JIB Crane
Jib Cranes are robust and flexible material-handling solutions used across various industries for lifting and moving operations. Equipped with hoists, wire ropes, and chains, these cranes play a vital role in streamlining workflows, especially in workstations, production zones, and auxiliary areas under overhead cranes. Designed for durability and efficiency, Jib Cranes offer significant workspace flexibility while remaining cost-effective and easy to maintain.
Bhagirath Heavy Transmission offers a wide range of Jib Cranes tailored to meet specific industrial needs. From wall-mounted designs for space-saving installations to free-standing models for heavier loads, each type is manufactured with precision and conforms to industry safety and quality standards.
Types of Jib Cranes
Wall Mounted Jib Cranes (Tension-Based)
- Capacity: 250 kg to 2,000 kg
- Span: Up to 20 feet
- Rotation: 180°
- Economical option using a standard I-beam
- Ideal for maximizing workspace, even in compact areas
Mounted directly to building columns or walls
Full Cantilever Jib Cranes
- Capacity: 250 kg to 2,000 kg
- Span: Up to 20 feet
- Rotation: 180°
- Economical option using a standard I-beam
- Ideal for maximizing workspace, even in compact areas
Mounted directly to building columns or walls

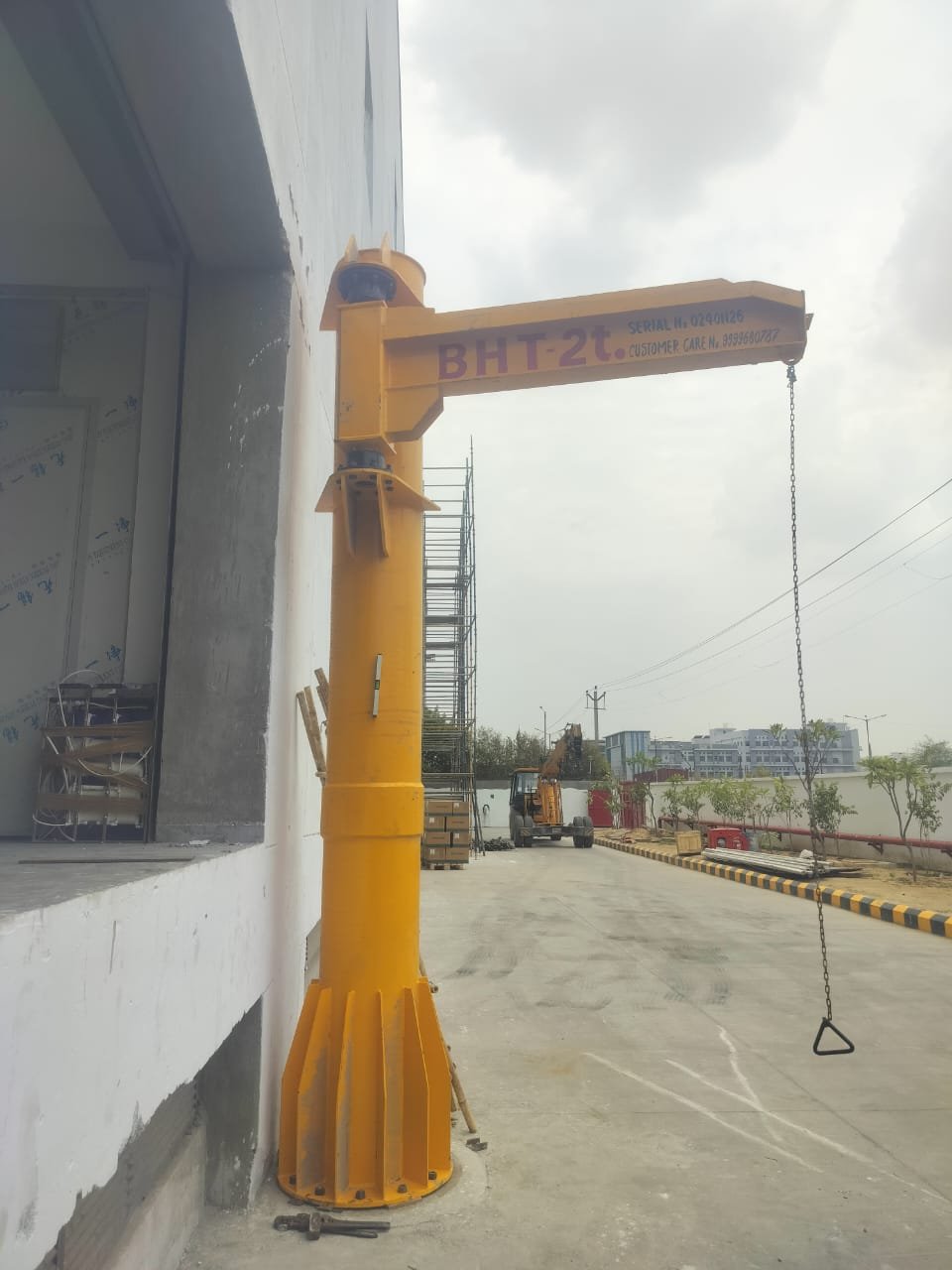

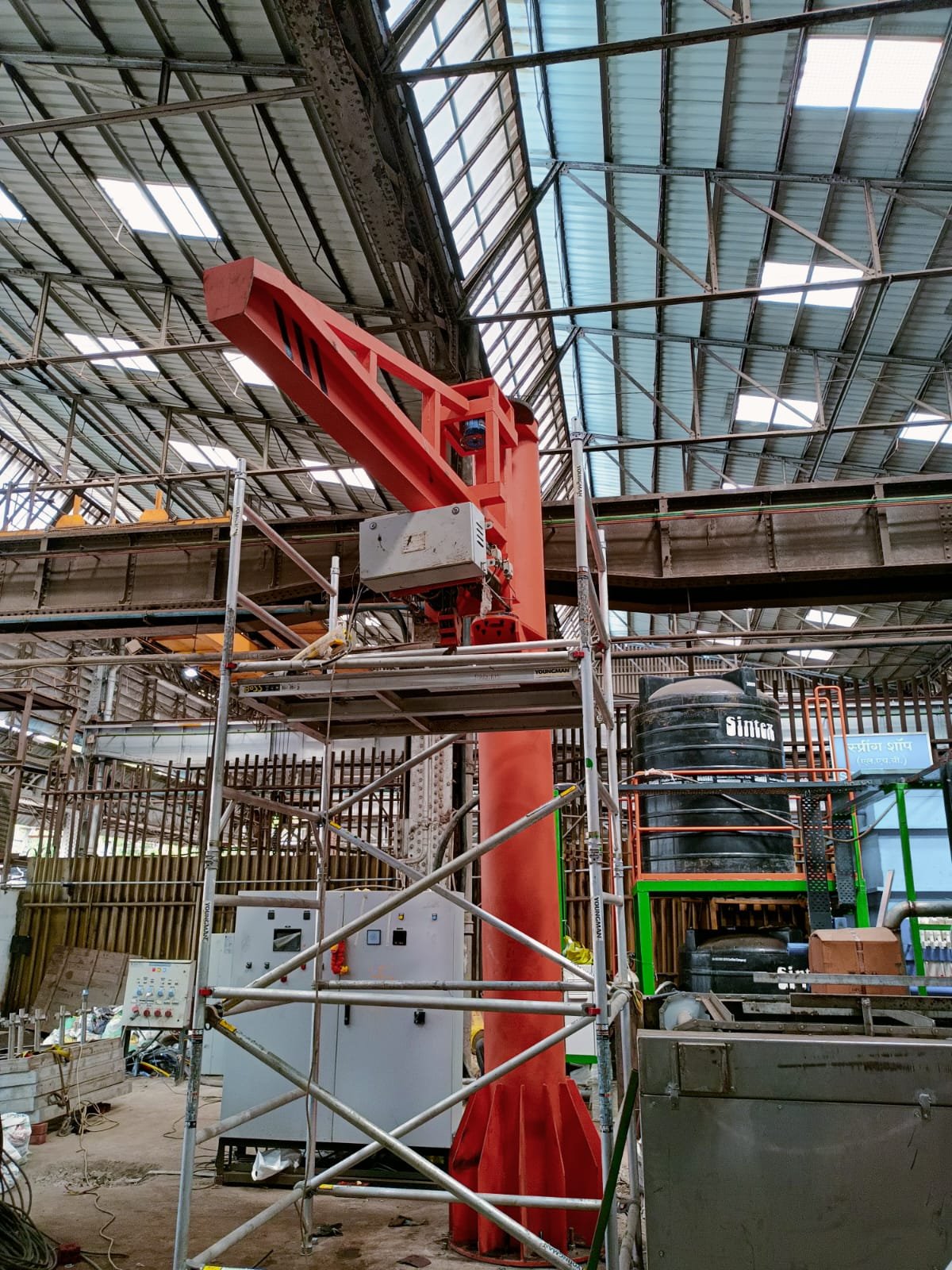

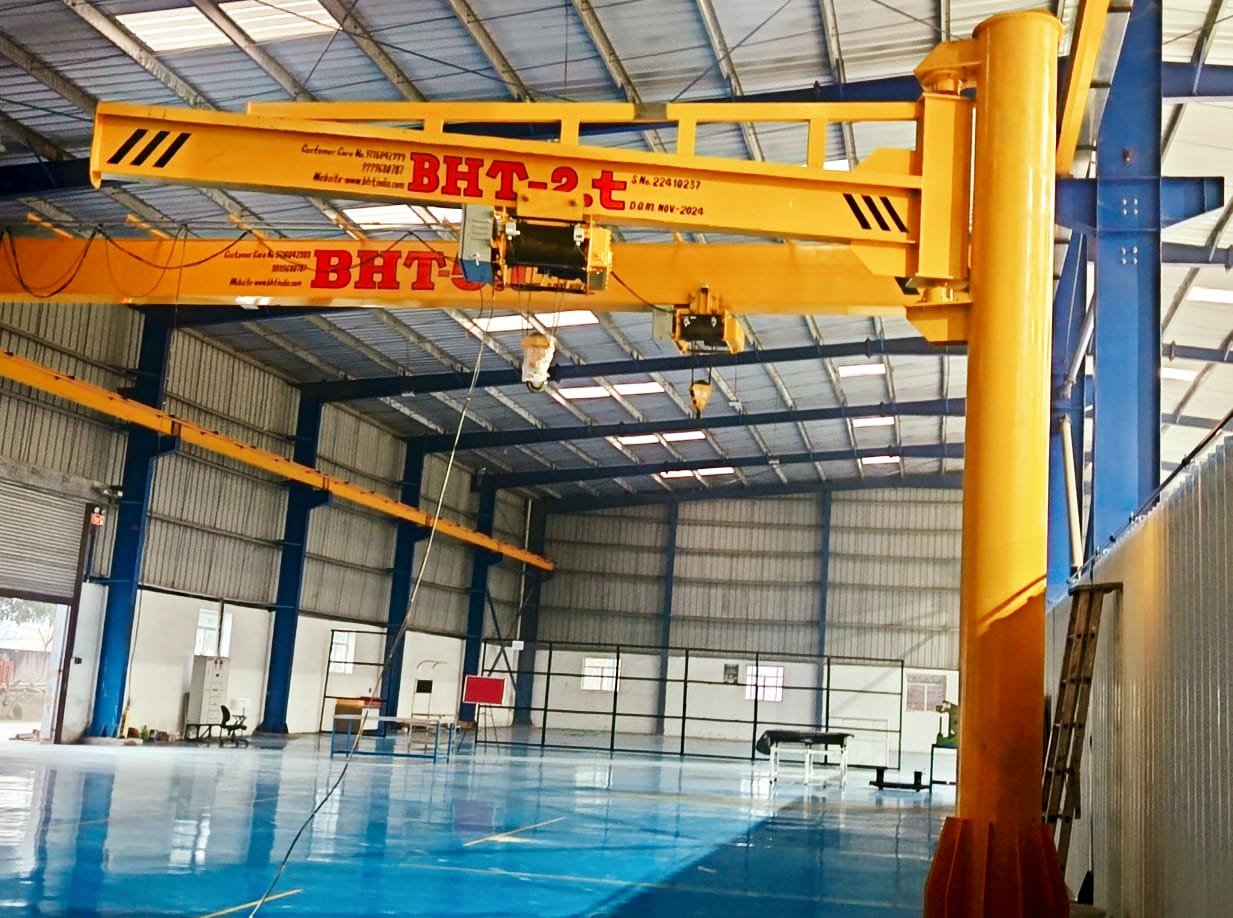

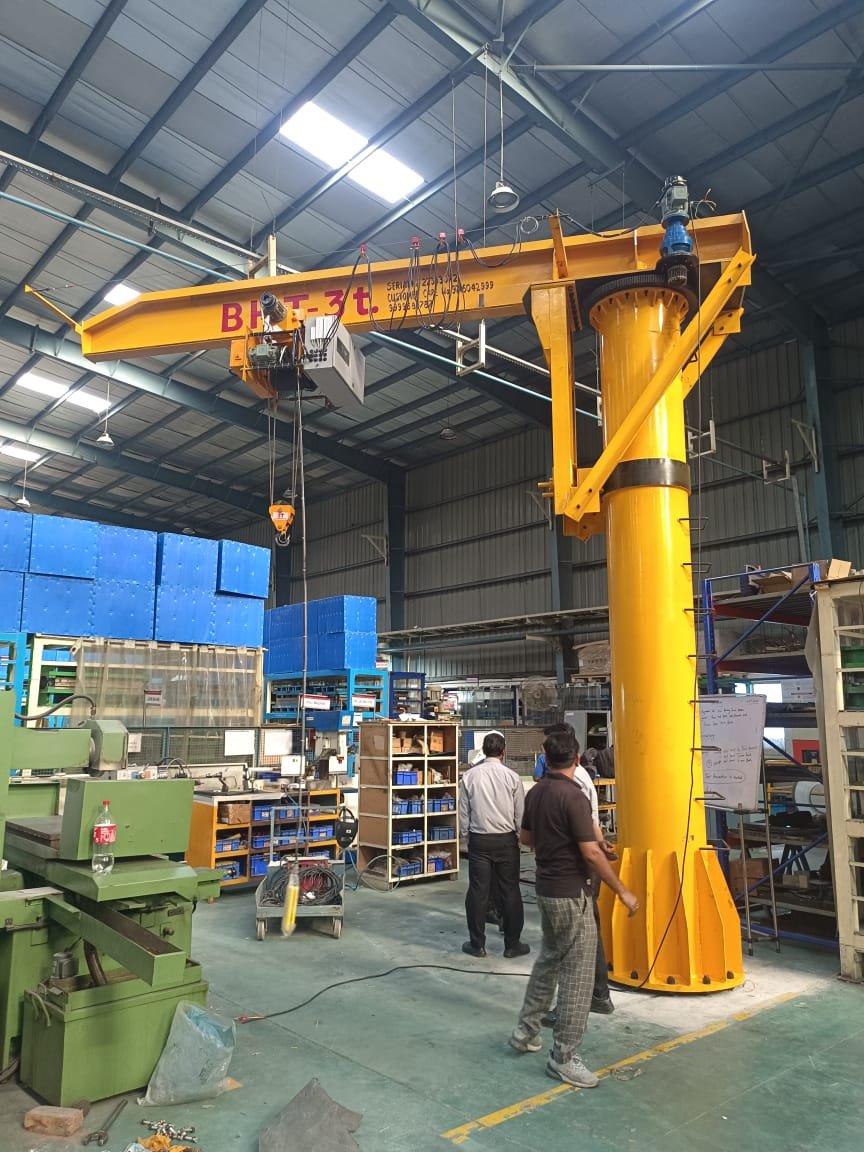

Self-Supported / Pillar Mounted (Free Standing)
- Capacity: 250 kg to 5 Ton
- Span: Up to 20 feet
- Rotation: 360°
- Mounted on a reinforced concrete foundation
- Fixed base plate with anchor bolts ensures long-term stability
- Suitable for both indoor and outdoor heavy-duty operations
Types of Jib Cranes
- Wall Mounted Jib Cranes (Tension-Based)
- Capacity: 250 kg to 2,000 kg
- Span: Up to 20 feet
- Rotation: 180°
- Economical option using a standard I-beam
- Ideal for maximizing workspace, even in compact areas
- Mounted directly to building columns or walls
- Full Cantilever Jib Cranes
- Capacity: 250 kg to 2 Ton
- Span: Up to 20 feet
- Rotation: 180°
- Offers maximum clearance under boom
- Ideal when installation close to ceilings is required
- Ensures full usage of available work area
- Self-Supported / Pillar Mounted (Free Standing)
- Capacity: 250 kg to 5 Ton
- Span: Up to 20 feet
- Rotation: 360°
- Mounted on a reinforced concrete foundation
- Fixed base plate with anchor bolts ensures long-term stability
- Suitable for both indoor and outdoor heavy-duty operations
